25/50m Olympic Target Systems

iScore 25/50m Targets Product Comparison and Pricing

iScore 25/50m Electronic Targets have been developed for use in 50m ISSF shooting disciplines and 25m, 50m and 100m incremental shooting, air pistol and rifle shooting and small calibre firearms.

iScore
25/50m
STANDART
iScore
25/50m

BALLISTIC
Air GunNoYes
FirearmYesYes
Connection
Type
Cable/Wifi 50mWifi 100m
SoftwareStandartPro+
LightNoLED
Display18,5"18,5"
Operating
System

W7/10W7/10
Silicone Rolls1 piece Silicone
(565cm)
3 piece Silicone
(565cm)
Mask3
pieces Silicone
10
pieces Silicone
FPSNoYes
Balistic ModeNoYes
Armor6-10mm Hardox10-15mm Hardox
BUY
NOW
BUY
NOW

iScore 25/50m Targets General Specifications


High Accuracy and Advanced Technology Content


iScore products are developed by combining hardware and software features that include scientific and technological




iScore utilises 520x520mm closed room acoustic measurement technology for electronic scoring.


The unique iScore technology uses 8 acoustic sensors in 25/50m target type. These sensors are placed on the axes of the target. It provides high accuracy thanks to specially developed "sensor data processing" software. iScore 25/50m target accuracy is 0.03mm. It provides accuracy in accordance with ISSF Standards.

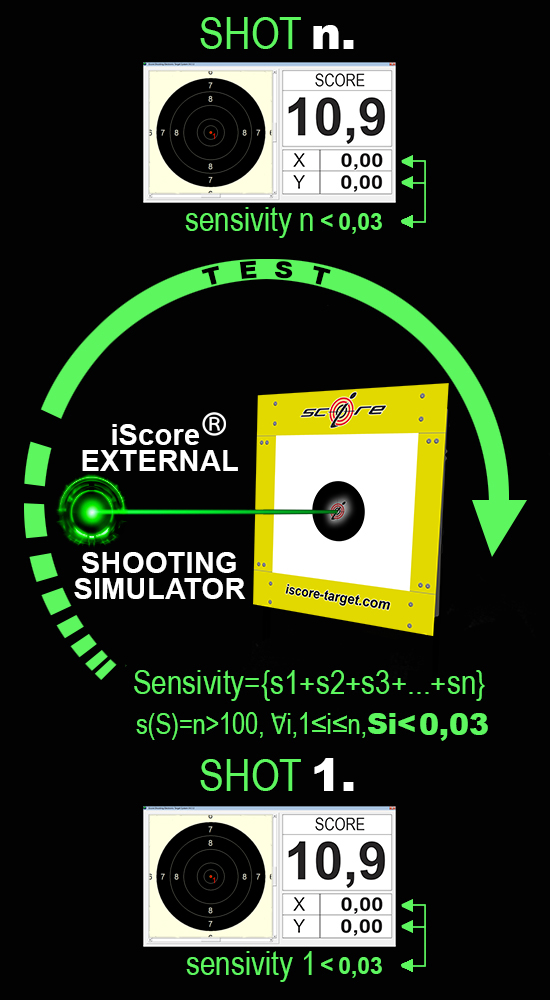

iScore targets are tested with a unique three-stage verification method. Two test simulators have been developed by iScore. These are Electronic and Virtual shooting simulators.

The accuracy of the electronic shooting simulator is very close to one hundred per cent. With this simulator, shots can be fired in many different areas. The locations of the shots are precisely detected with an error close to zero. In this way, electronic hardware and software verification is performed.


The virtual shooting simulator can fire hundreds of shots at the same point with a precision of 0.03mm>. In all shots fired, iScore accurately gives the targets with an accuracy of 0.03mm! All shots are always in the same place.

As the last simple test, real shooting with ammunition and paralox error control is performed. iScore targets do not make errors.


iScore 25/50m targets use a closed room system. In other words, acoustic sensors are placed inside a room protected from the environment. Sensors are not affected by weather conditions. Dust, rain, snow, etc. do not reach the sensors and do not impair the performance of the sensor. The air inside the chamber does not move, which ensures optimum accuracy.


Closed chamber acoustic targets are still the best and most reliable way to create high power electronic targets.


An intelligent software based on Windows (Win 7/8/10) has been developed for iScore 25/50m targets. iScore products are used with special computer models with touch screens suitable for indoor and outdoor use. Shooters can also use iScore 25/50m software on their personal computers. Preferably adjustable LED backlight systems can be used.




Industrial Strong Mechanical Design


Made from high quality profesional and replaceable mechanical parts

We do not use weak metal materials such as aluminium.

Rivets are never used in mechanical connections.
We strengthen all mechanical connections by welding.

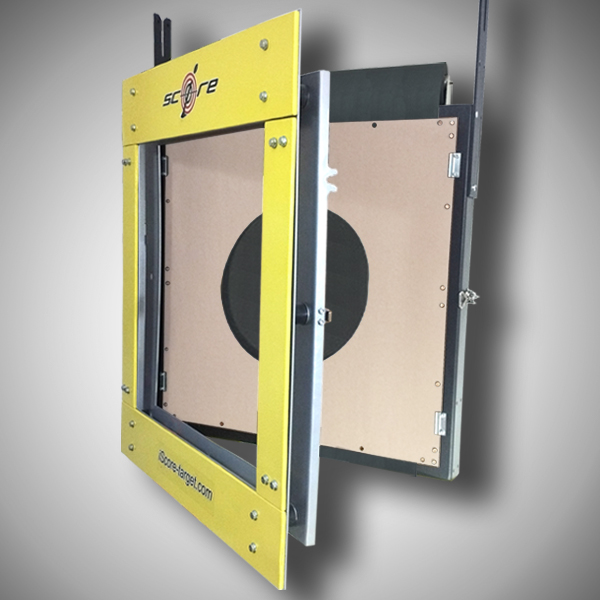

Our targets use replaceable chrome-plated metal hinge and lock systems.

Most parts of our strong targets are made of zamak solid metal and steel.

Target frame and mounting parts are made of 2,5 - 6mm steel. The replaceable armour is made of 10mm (2500 J. increased projectile energy) -15mm (7000 J. increased projectile energy) Hardox steel.
Metal parts are painted with electrostatic epoxy powder paint and baked.

We have designed our products to be durable, reliable and can be used for many years.

All systems require very little maintenance. Mechanical parts can be easily replaced.

iScore electronic targets are designed for use in indoor and outdoor shooting ranges. Our targets are designed and manufactured in IP65 class.
